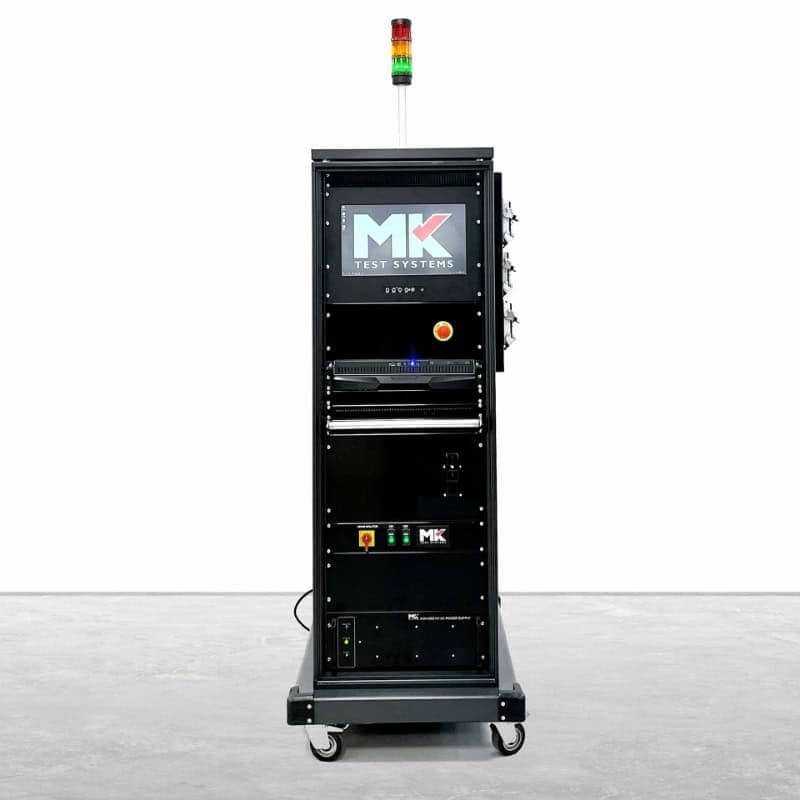

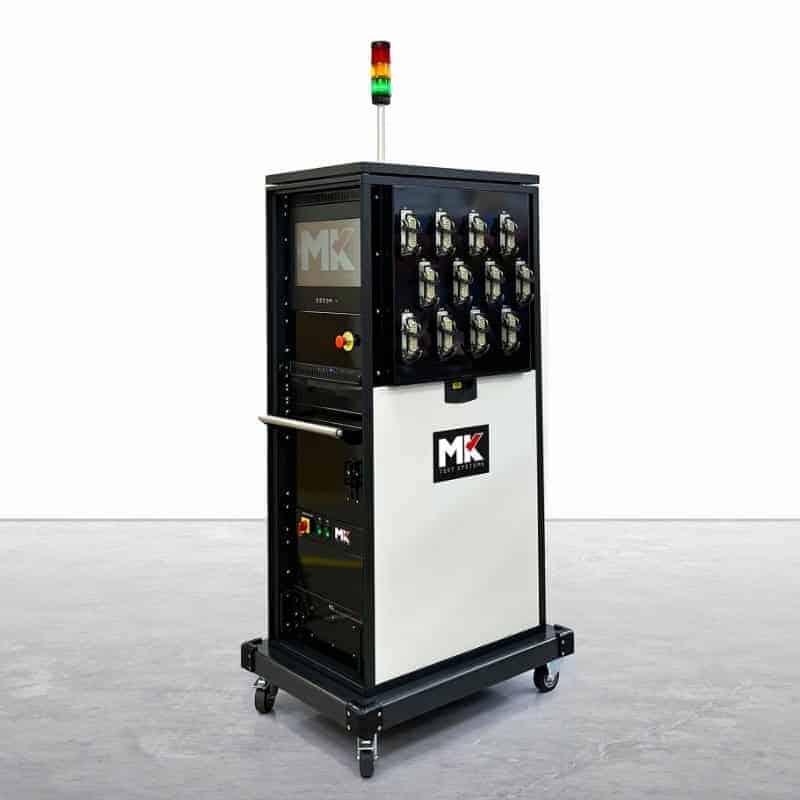

Automeg

Our automatic cable & wire harness testing powerhouse.

Automeg ® offers powerful, flexible, simple to use and industry-compliant cable testing capabilities. It’s available in a wide range of specifications and formats to suit your business, and has optional modules for extra functionality if needed for your specific application.

Automeg speeds up your testing without compromising on accuracy or product quality.

We can help you cut your testing time by at least half. Santon reduced theirs by 91%. Motherson are achieving a 9hr reduction on larger assemblies. Ventura Systems are saving 56% testing time, and now use 97% fewer interface cables since investing in an Automeg test system.

How much time do you want to save?

How Automeg delivers powerful, flexible & simple cable testing:

Your spec, built from our test modules

All Automeg models offer continuity testing, resistance measurement, short circuit detection, and HV DC insulation resistance measurement as standard.

Optional modules include HV AC HiPot (Dielectric withstand) testing, capacitance measurement, active component function testing, and time based function testing.

Configurations to suit your application

Layout options include:

Multiple measurement formats

Continuity resistance measurement formats available:

Easy-to-use test management software

High voltage testing? No problem!

Automeg can test up to a maximum insulation voltage of 8000Vdc.

Our model ranges span from maximum insulation test voltage of 1000Vdc, 1500Vdc, 2500Vdc, 3000Vdc, 3500Vdc, 6000Vdc and 8000Vdc.

Supports third party integrations

Automeg integrates with a wide range of third party sources, scopes and measurement modules, enabling wider testing capability and data management control.

Special test options include fibre optic testing, Databus Test 1553B, 3910, ARINC, CAN; Digital logic test, TDR, FDR and more.

Think outside the rack with alternative Automeg formats, capabilities, and bundles.

Your test spec and application are uniquely yours. Whilst rack-mounted systems are our most commonly requested format, we also design systems for use in the field or for more specialised testing. Want the test program and interface cables as well? No problem! Tell us what you need, and we’ll deliver.

Guaranteed to improve TAT, streamlining test system readiness straight out of the box.

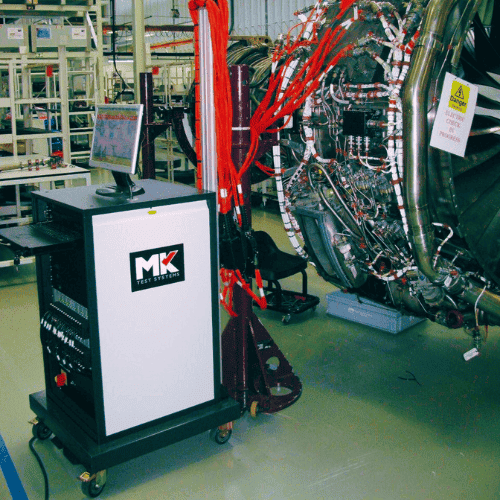

Our complete turnkey aircraft APU and engine test package includes:

The Automeg test system
Test program pre-written for specific engine variants
The required interface cable set

Need some stimulation?

These specialist Automeg models test the function and integrity of wiring harnesses combined with active components such as relays, switches, contactors, diodes, LEDS, actuators and other active components.

Our software enables function test programs to be created automatically from existing ECAD data and our component library; meaning all routes and subtests are automatically calculated in seconds.

Testing wherever you need it – all the testing capability of the Automeg®, in a portable format.

Portable Automeg is designed for testing in spaces too small for a standard rack-mount wire harness test system. It’s easily deployable in the field for maintenance or repair fault finding.

Our specialist low-noise slip ring tester.

This Automeg model has an additional SRT module offering fast and accurate measurement and reporting of noise, contact resistance and insulation resistance.

Designed to improve QA for manufacturers of slip rings, commutators, and rotary connectors, it can also be used to test devices coming back for repair and overhaul.

Get the best from your Automeg, with ongoing service and support.

Whether you prefer the DIY approach or need some hands-on support, we help you get the best from your Automeg. Our resources library contains product manuals, FAQs, ‘how to’ guides, and more to help you help yourself. Alternatively, you can raise a support ticket, book training or webinars, and browse our service options.

We help you test your best.

"We really value the flexibility of the system and the quality of the results; the F2500 delivers exactly what we asked for with all-in-one testing and fast error recognition."

"The fact that you have an experienced local support team for a quick turnaround time on repairs and 14 commissioned test benches in South Africa gave us the confidence that MK Test Systems was the best choice to support a project of this nature.

During my meetings with MK Test, there was a clear advanced technical competency on the systems and flexibility to accommodate the customer as much as possible."

"MK Test are the industry standard for automated test equipment. Using the Automeg F1500 has greatly improved our efficiency and accuracy when testing."

"The D1500 test systems, integrated within our mechanical housing are an impressive part of our factory. The integration was a step forward within quality improvement of Ventura Systems."
