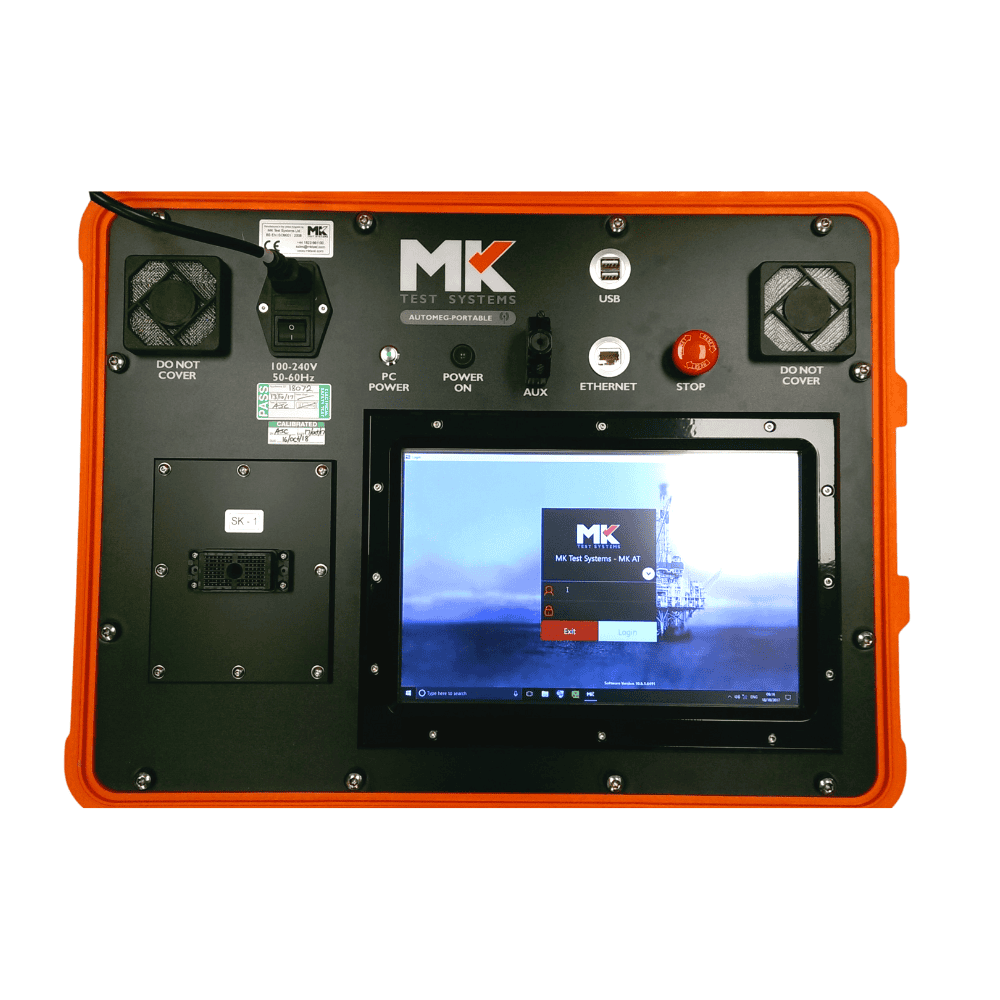

Portable Automeg

Testing wherever you need it.

All the testing capability of the Automeg®, in a portable format.
Portable Automeg is designed for testing in small spaces too small for a standard rack-mount wire harness test system.  It's easily deployable in the field for maintenance or repair fault finding.

Main PORTABLE AUTOMEG Applications

Portable Automeg application 1 - submarines

Submarines – equipment calibration, testing

Portable Automeg application 2 - naval ships towed arrays and missile systems

Naval Ships – towed arrays, missile systems harness tests

portable automeg application defence defense

Military support in the field – Vehicle harness testing

Portable Automeg application 4 - subsea oil and gas systems

Oil and gas systems

Portable Automeg application 5 - track-side train - function and harness testing

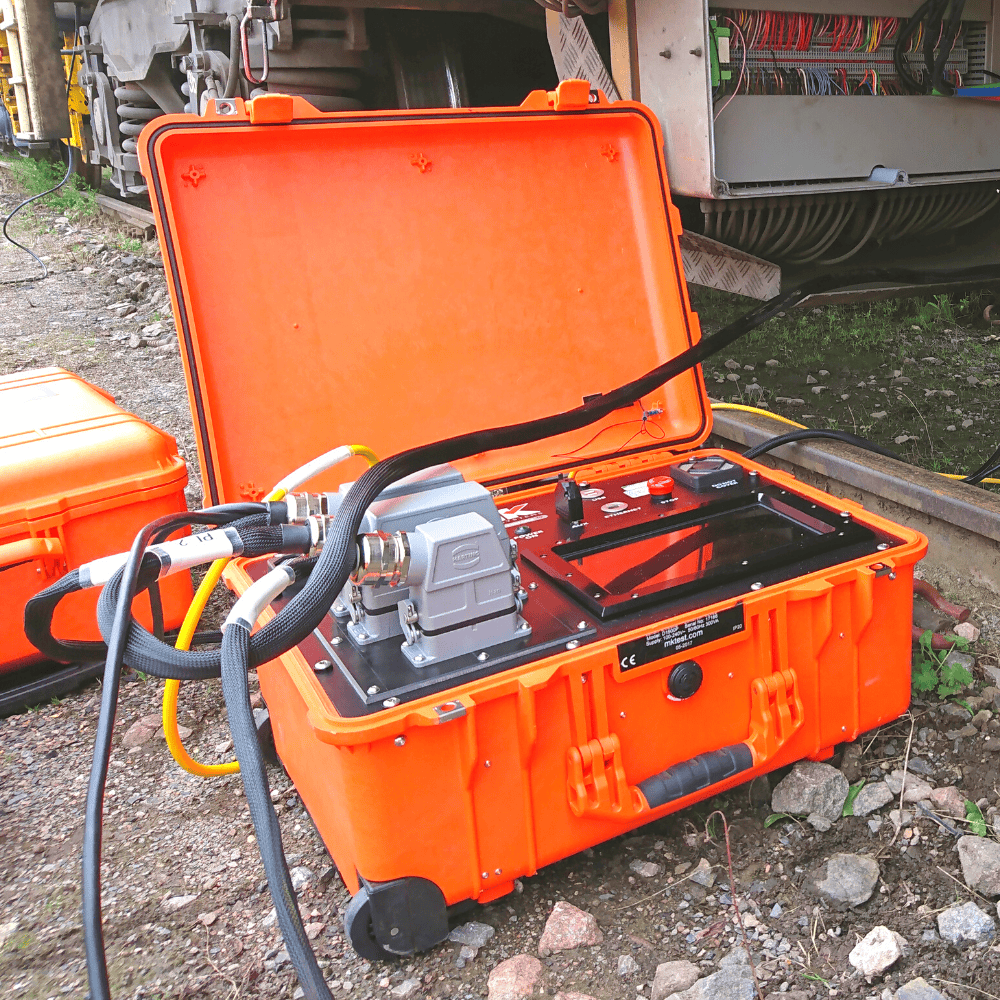

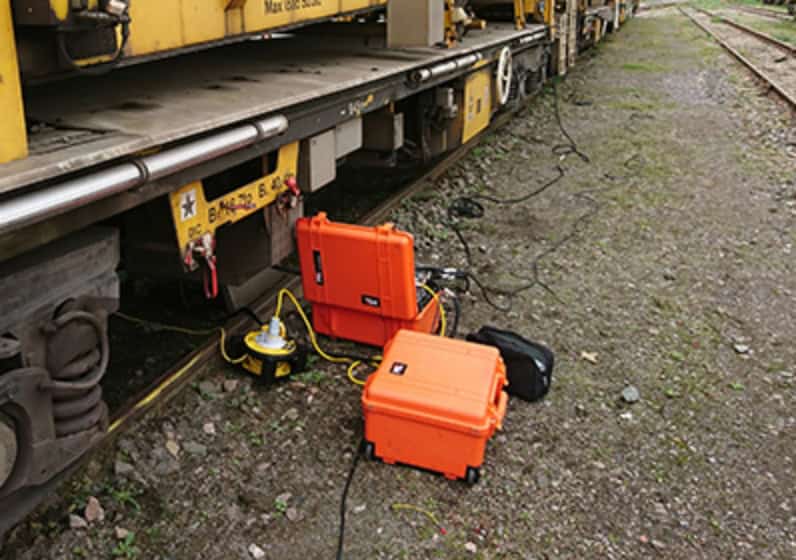

Track-side train – function and harness testing
  • The following test and measurements as standard:
      • Continuity resistance
      • Short circuits
      • High voltage DC insulation resistance
  • Insulation test voltage: From 25Vdc up to 1500Vdc
  • Continuity measurement formats available:
      • Dual-wire
      • Multi-bus
  • Optional modules:
      • HV AC HiPot testing
      • Capacitance and inductance measurement
      • LCR / function test stimulus switching modules
  • Integration with a wide range of third party sources, scopes and measurement modules
  • Functional testing of relays, diodes, switches etc
  • Portable, rugged casing
  • IP67 (splash proof) rating for transportation
  • Reduced testing time
  • Increased accuracy
  • Paperless reporting
  • Easy operation
  • Simple-to-use MKAT software

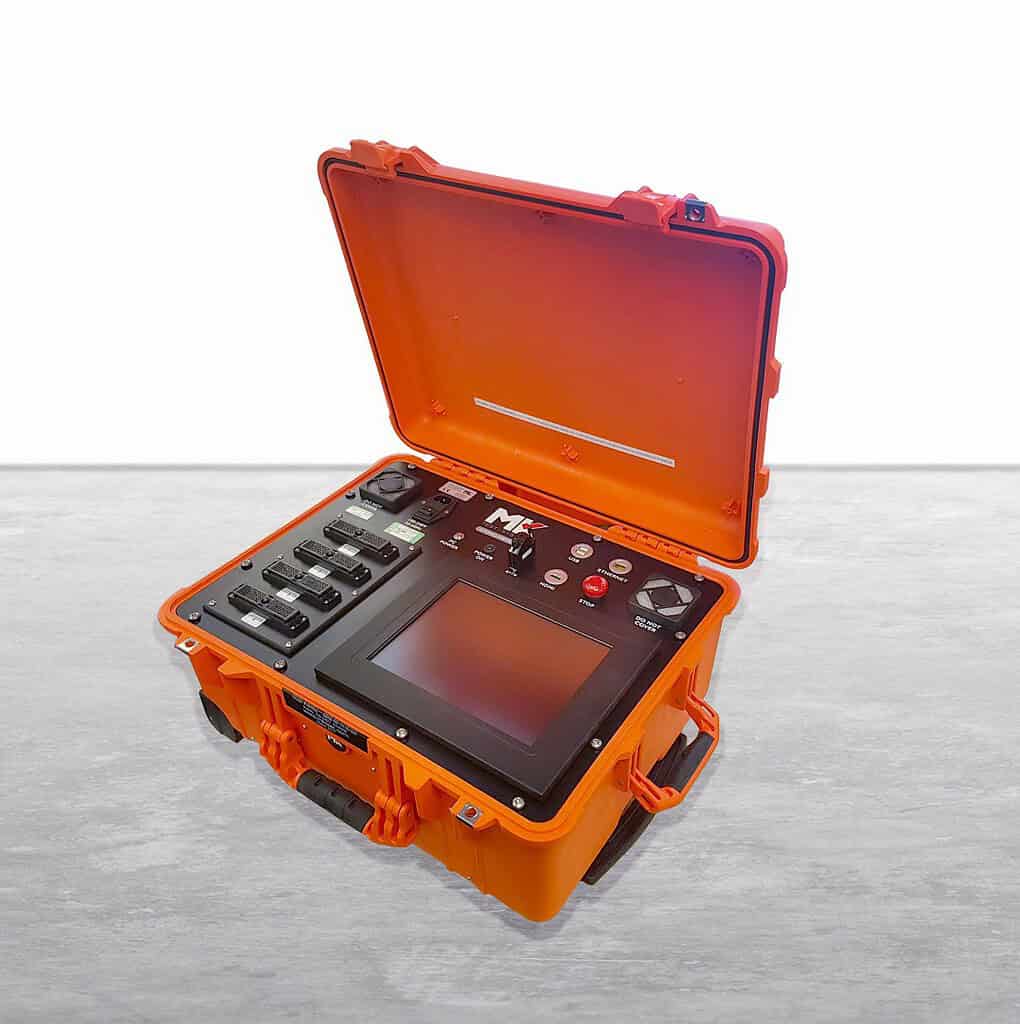

  • Ruggedised Peli case

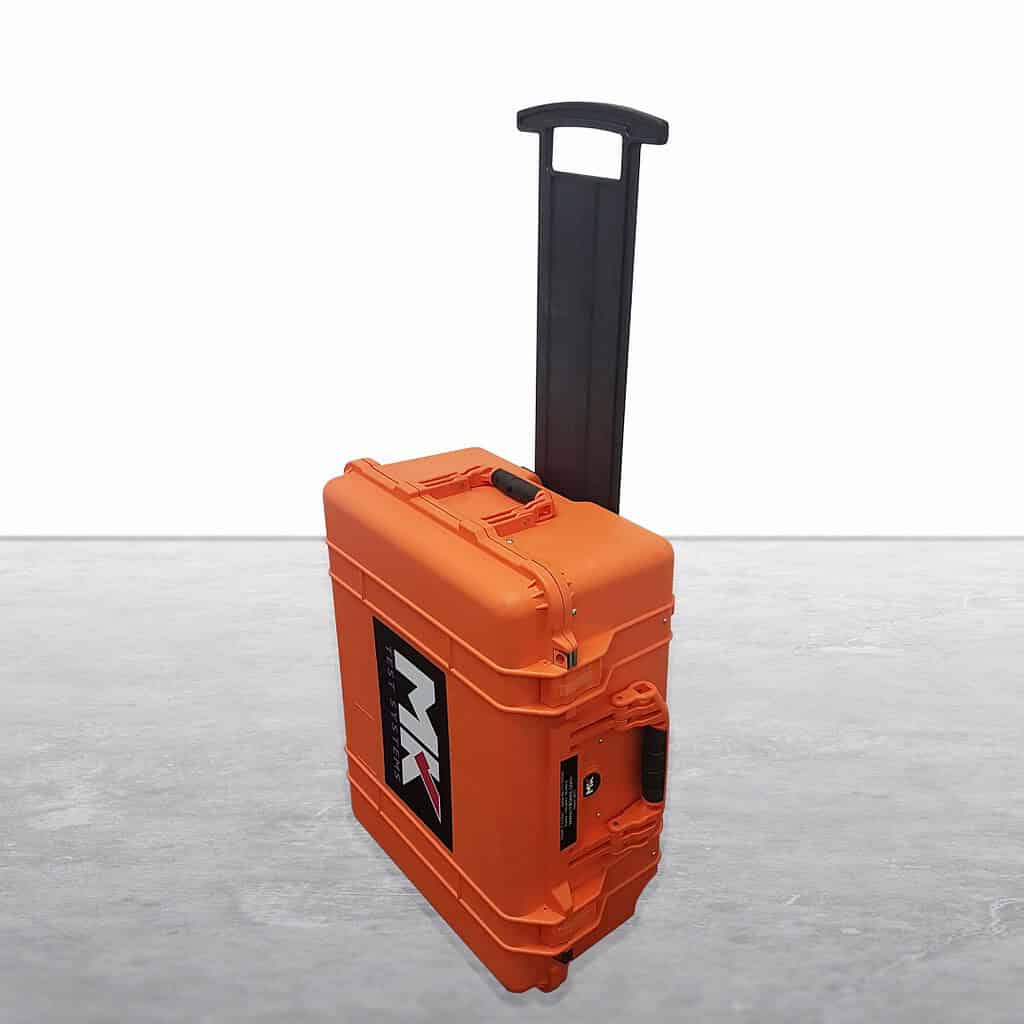

  • Portable – wheels and pull handle options
  • Robust zero insertion force interface connectors
  • Customer specific connectors as option
  • IP67 (splash proof) rating for transportation
  • Powered by MKAT test management software, rated 'easy to use' by 90% of our customers.
