The Ultimate Guide to Automotive Wire Connectors: Types and Testing Solutions

Automotive wiring is critical to vehicle safety and functionality, linking essential electrical components and systems. To ensure reliable performance under the challenging conditions vehicles face—including vibrations, extreme temperatures, and moisture exposure—automotive wire connectors must meet exacting standards. Proper testing of these connectors is vital to guarantee their functionality and safety.

This guide explores the types of automotive wire connectors, their applications, and the role of advanced test systems in ensuring connector reliability and compliance with industry standards.



What Are Automotive Wire Connectors?

Automotive wire connectors are electrical components specifically designed to join wires and cables in vehicle electrical systems. They provide secure, corrosion-resistant connections that maintain system integrity under harsh conditions. From lights and sensors to power windows and infotainment systems, connectors are fundamental to vehicle operation.

Given the importance of these components, rigorous testing with reliable systems is essential to confirm their performance and durability.



Common Types of Automotive Wire Connectors

Automotive wire connectors vary by design and application. Here’s an overview of the most commonly used types and the critical role testing plays in their development and quality assurance:

1. Bullet Connectors

• Description: Cylindrical, single-wire connectors with male and female ends for a secure fit.
• Uses: Low-current applications like lights and auxiliary equipment.
• Testing Requirements: Durability under vibration and secure electrical contact verification.

2. Spade Connectors

• Description: Flat, spade-shaped metal ends that connect to terminal blocks or slots.
• Uses: Common in switches, relays, and dashboard components.
• Testing Requirements: Quick-connect reliability and resistance to mechanical stress.

3. Butt Connectors

• Description: Cylindrical connectors used to crimp and join two wire ends.
• Uses: Wiring harness repairs and modifications.
• Testing Requirements: Electrical continuity and insulation integrity under load.

4. Ring Terminals

• Description: Circular ends fastened to bolts or screws for a secure connection.
• Uses: Grounding wires, battery terminals, and high-vibration areas.
• Testing Requirements: Vibration resistance and contact stability.

5. Weatherproof Connectors

• Description: Connectors with sealing features to protect against moisture, dust, and extreme temperatures.
• Uses: Exterior lighting, engine sensors, and exposed components.
• Testing Requirements: Waterproofing efficiency and resistance to environmental stress.

6. Quick Disconnect Connectors

• Description: Flat connectors for easy tool-free connection and disconnection.
• Uses: Fuses, relays, and components requiring regular maintenance.
• Testing Requirements: Repeated connection cycles and reliability of the electrical pathway.

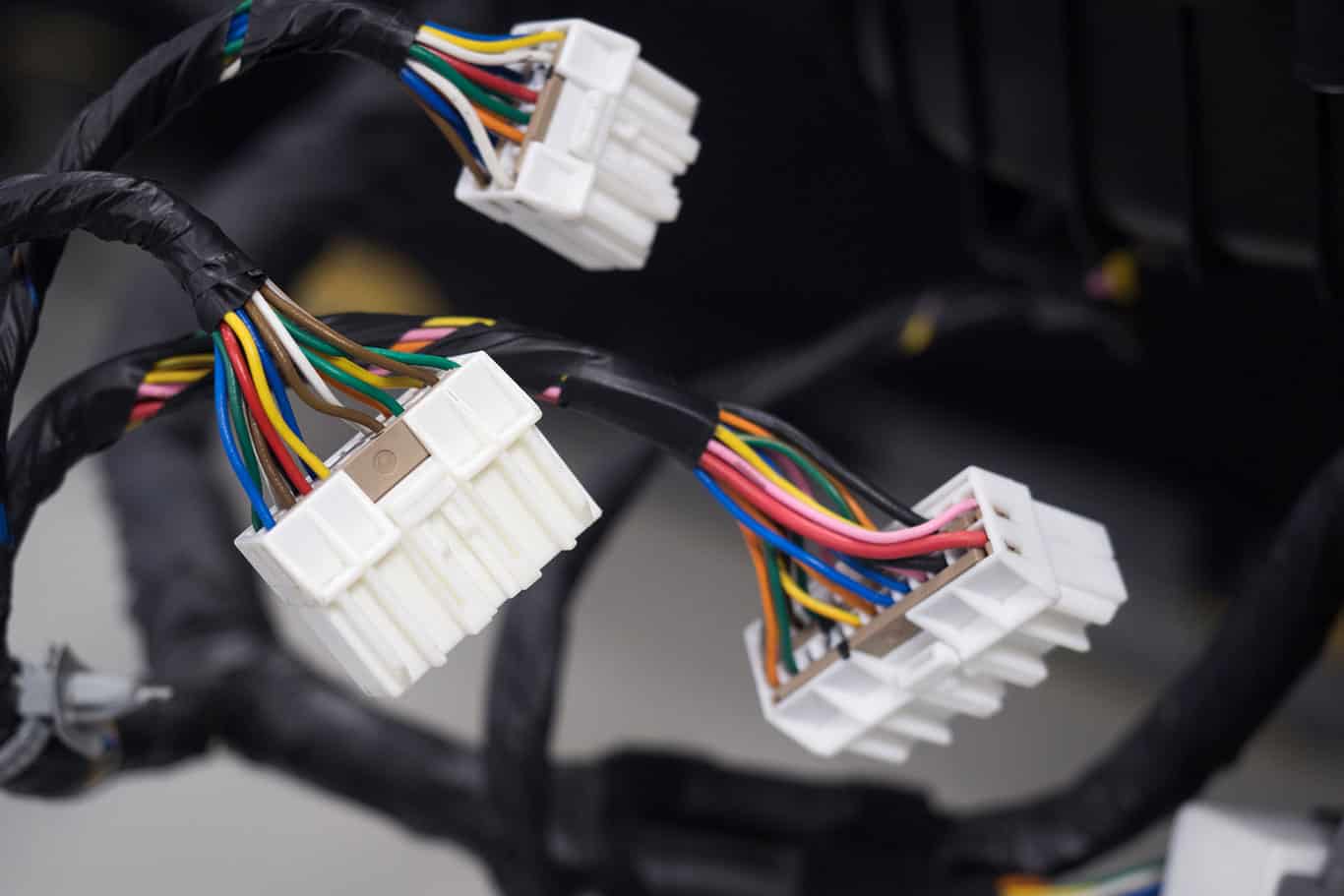

7. Multi-Pin Connectors

• Description: Connectors managing multiple wires in a single housing.
• Uses: Complex systems like ECUs and audio systems.
• Testing Requirements: Pin alignment, contact resistance, and overall assembly integrity.



The Role of Testing in Automotive Wire Connectors

To maintain the safety and performance of vehicles, testing automotive wire connectors is indispensable. High-quality test systems ensure connectors meet industry standards and perform reliably under real-world conditions.

Key Factors Tested:

1. Electrical Continuity: Ensures uninterrupted current flow.
2. Mechanical Durability: Verifies connectors can withstand repeated use, vibration, and stress.
3. Environmental Resistance: Confirms protection against moisture, temperature fluctuations, and corrosion.
4. Insulation Integrity: Prevents short circuits and ensures safe operation.



Why Use Advanced Test Systems?

Testing automotive wire connectors requires precision and reliability, which only advanced systems can provide. By automating the testing process and ensuring repeatable results, these systems help manufacturers:

• Reduce the risk of connector failure.
• Comply with stringent automotive standards.
• Optimise production efficiency and quality assurance processes.

At MK Test, we specialise in designing state-of-the-art test systems tailored to automotive wire connectors. Our solutions enable manufacturers to streamline testing procedures, improve accuracy, and achieve unmatched reliability.



Contact MK Test for Reliable Connector Testing Solutions

If you’re in the automotive industry and require dependable test systems for wire connectors, MK Test is here to help. Our systems are designed to meet the most demanding testing requirements, ensuring your products perform flawlessly in any environment.

📞 Call us today at +44 (0)1823 661100

📧 Email us at sales@mktest.com

Explore our comprehensive range of test systems and elevate the reliability of your automotive products.



Frequently Asked Questions (FAQs)

Q1: Why is connector testing essential in the automotive industry?

A1: Automotive environments subject connectors to extreme conditions. Testing ensures connectors can perform reliably under these challenges, minimising the risk of electrical failure.

Q2: What should I look for in a connector test system?

A2: A good test system should offer precision, automation, and flexibility to handle various connector types and testing parameters. It should also adhere to the standards laid out in the ISO 9001.

Q3: How does testing contribute to safety?

A3: Testing ensures that connectors are free of faults, reducing the likelihood of short circuits, overheating, or power loss—key factors in maintaining vehicle safety.
