Automeg
Automeg® streamlines QA for manufacturers by automating the wire harness testing process to quickly identify issues and enhance efficiency and reliability.
Perfect for manufacturing and maintenance environments, the Automeg reduces turnaround times while maintaining the highest performance standards, making it essential for quality assurance in automotive, aerospace, rail, and beyond.
Faster inspection times, greater accuracy.
RTS
Instant results using 90% fewer cables.
RTS uses micro switching technology to carry out wire harness testing in real time. It also reduces the need for high cost interface cables by around 90%.

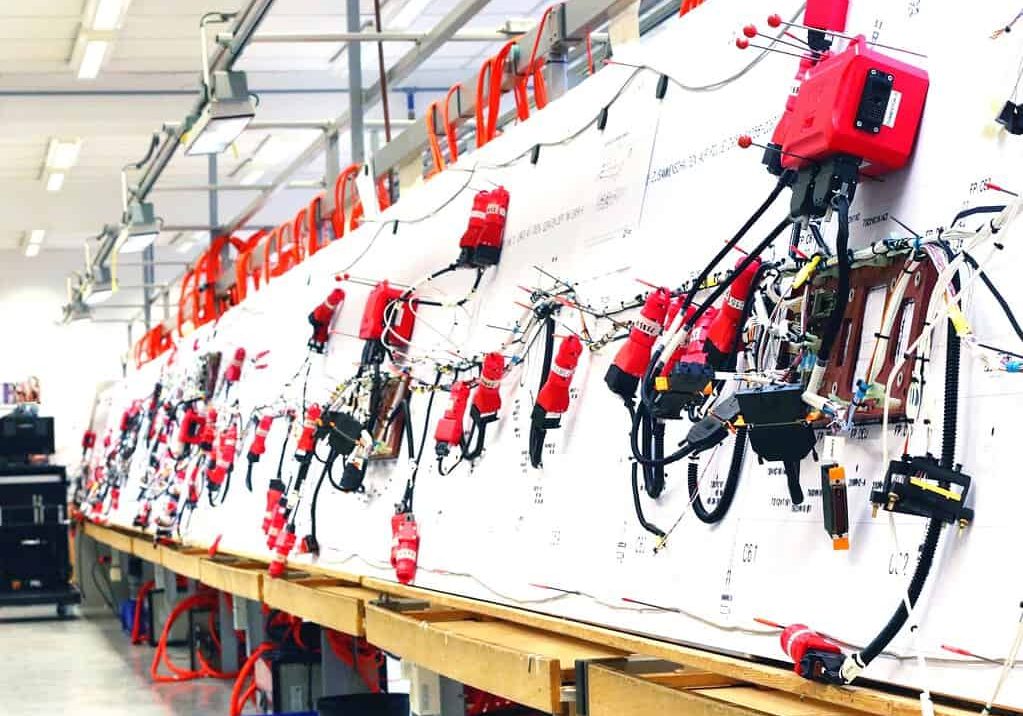

A best-in-class solution for wire harness and sub-assembly manufacturers, RTS is ideally suited for formboard harness testing, and high pin count, high connector count assemblies.
Why choose MK Test Systems for your wire harness testing:

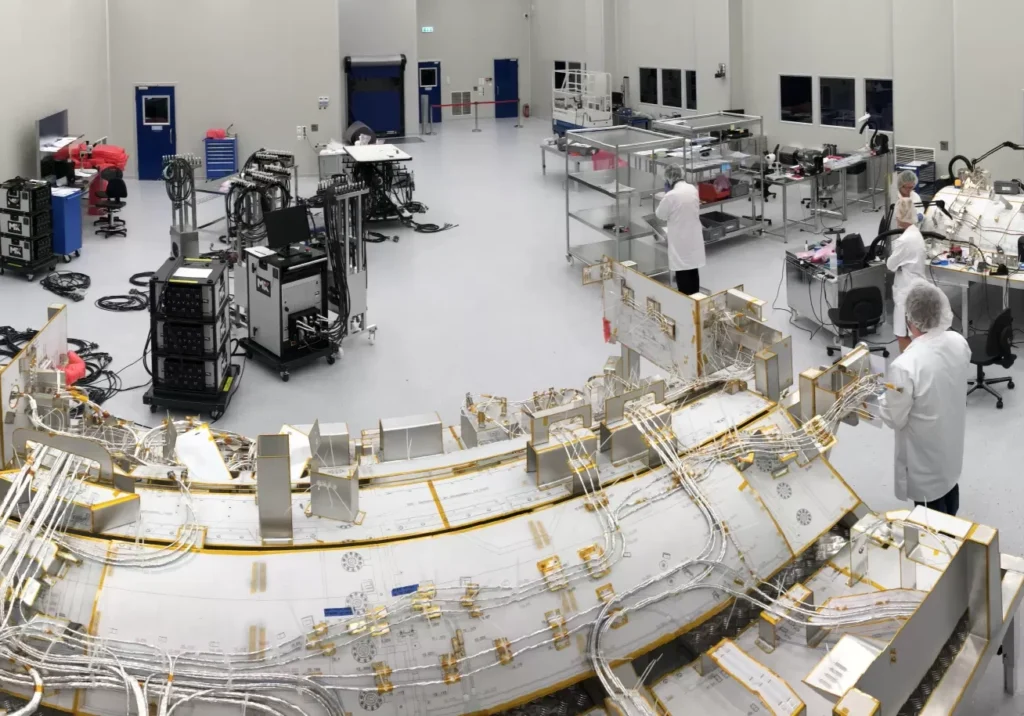

Our systems can be integrated into test tables and test benches for the automated connection and testing of harnesses.
We've worked with partners such as Dinefer to supply high voltage test systems for integration into their benches.
Customers consistently save hours of testing time by implementing our systems.
In one example, an aircraft harness manufacturer had issues with testing complex harnesses of up to 600 connections. Their manual testing took over 5 hours for continuity and HV testing alone, with no time short circuits being tested due to the length of time it would take.
The Automeg D1500 transformed the testing process, and enabled 100% of the wires to be tested for complete continuity, short circuit and HV insulation.
The test phase was reduced to just 146 seconds per harness - 98% faster!
Powered by MKAT test management software, rated ‘easy to use’ by 87% of our customers.
Contact us to request a quote, demo or more details about our wire harness testing solutions.
