ExLRT
The intrinsically safe one.
Safe for use on fuelled aircraft, the ExLRT® is designed with MROs in mind. It’s also specified in The Boeing Company maintenance manuals (part number XLR-9703-01).
The ultimate tool to carry out prescribed loop resistance testing on aircraft during maintenance, the ExLRT is certified by all global standards as safe for use in high-risk flammable zones. It’s small and light enough to be used by a single operator, and automatically records all test data, eliminating the need for paper records.
Main EXLRT Applications

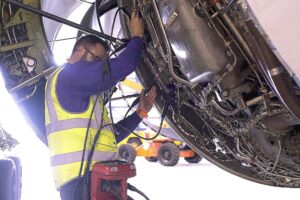

Loop resistance testing on aircraft

Alternative to the LRT tool 906-10246-3. Both models are listed in The Boeing Company maintenance manuals (AMM).

- Boeing part number XLR-9703-01
- Alternative to BAE LRT 906-10246-3 - both tools are approved and specified by Boeing.
- 200Hz frequency
- Ex ia IiA T3 Ga (60079-11) Certified
- Loop test resistance range from 0.5mΩ to 4000mΩ
- Joint test resistance range from 0.05mΩ to 4000mΩ
- Dimensions 150mm length x 200mm width x 300mm depth (6 x 8 x 11.8 inches)
- Weight 3kg (6.6lbs)

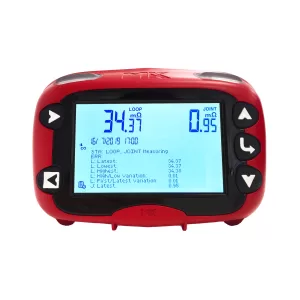

- Large backlit LCD screen
- Text instructions to guide operator through the test when in automatic mode
- Record Mode enables recording of measurements for upload to a PC - info sheet download available here.
- View, edit and delete measurements using record mode
- Self calibration saves up to 2 months on turnaround time
- Wearable options including belt clip
- Powered by MKAT test management software, rated ‘easy to use’ by 90% of our customers.
- Battery designed to last for a full 8hr shift without requiring a recharge
- Battery can be charged without removal or after being removed from device
- Approved for use on Boeing Aircraft - named as a specified tool (XLR-9703-01) in the AMM
- Lightweight and portable – 80% lighter than LRT 906-10246-3
- Certified to all global standards as safe for use in fueled aircraft
- Single operator use
- Backlit screen for easy reading in any conditions

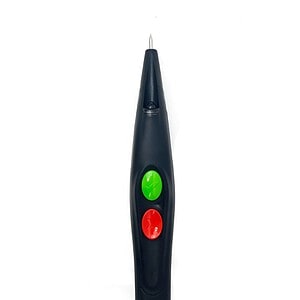

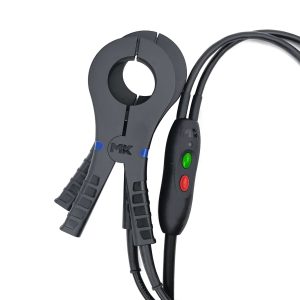

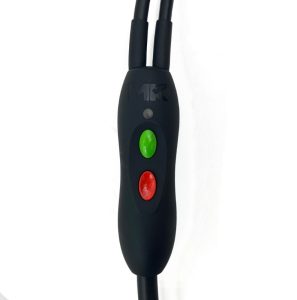

- Controls on the probes to speed up testing
- Removable batteries means no tool down-time
- Automatic pass/fail status indication and reporting
- Proven ROI within 12 months
- 77% reduction in time spent on data collection, management and error correction compared to an LRT.
