The smart one.

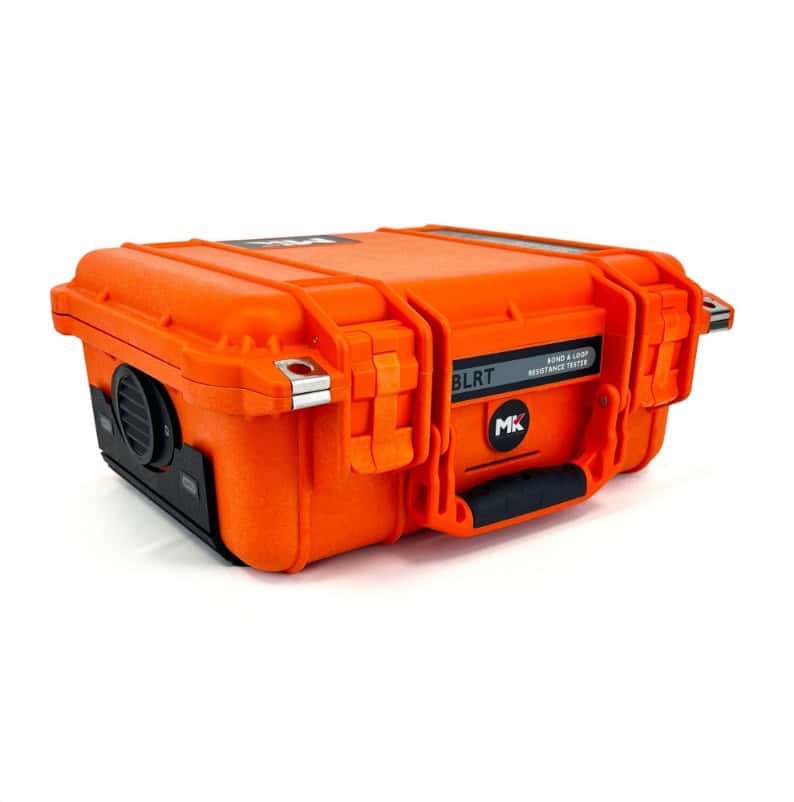

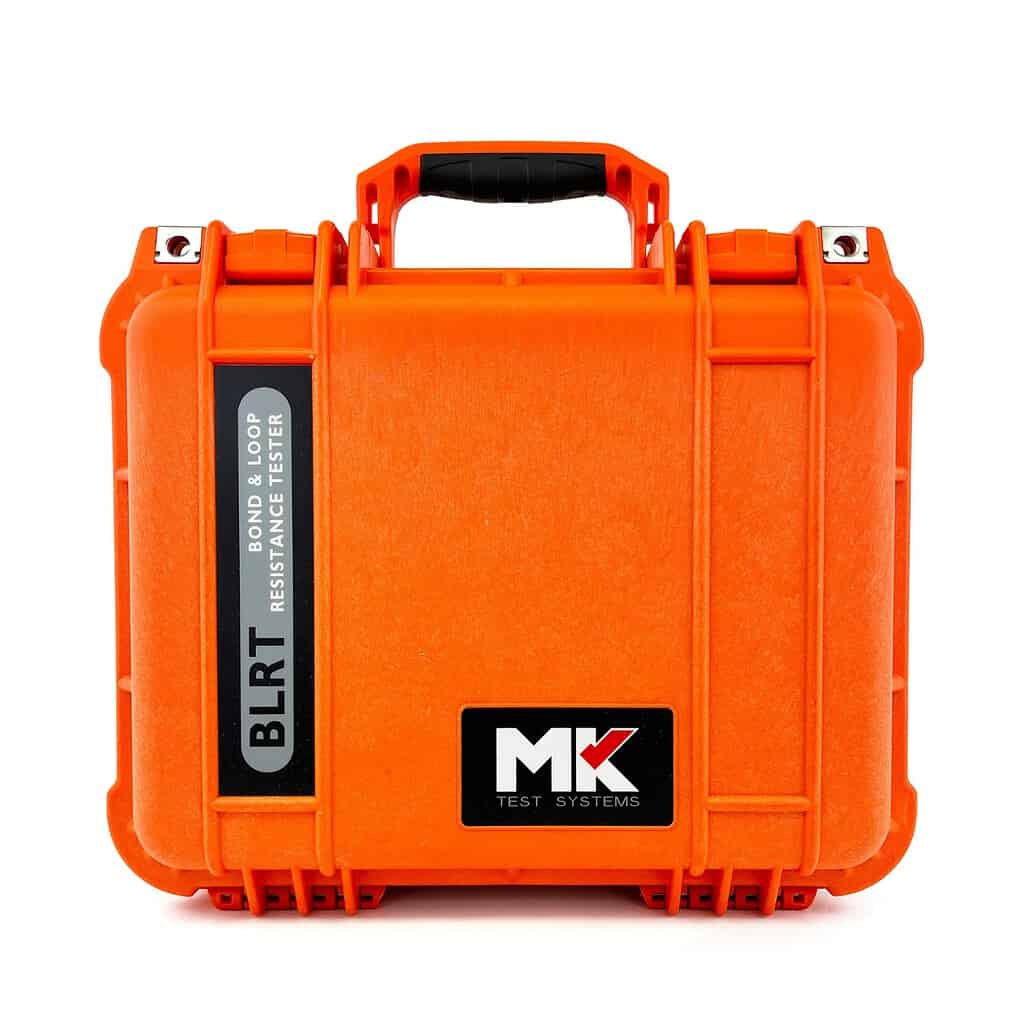

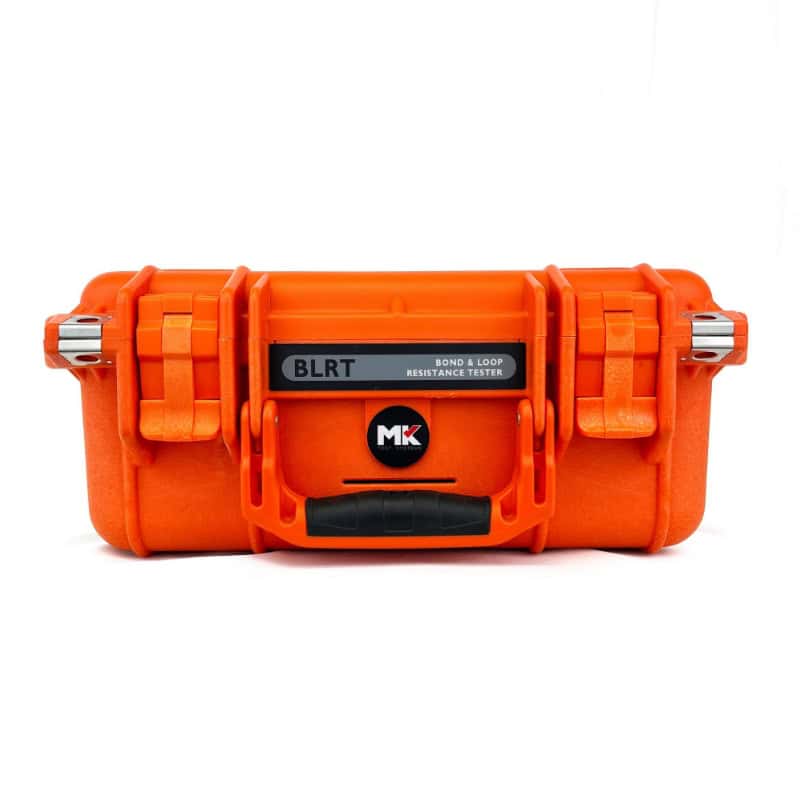

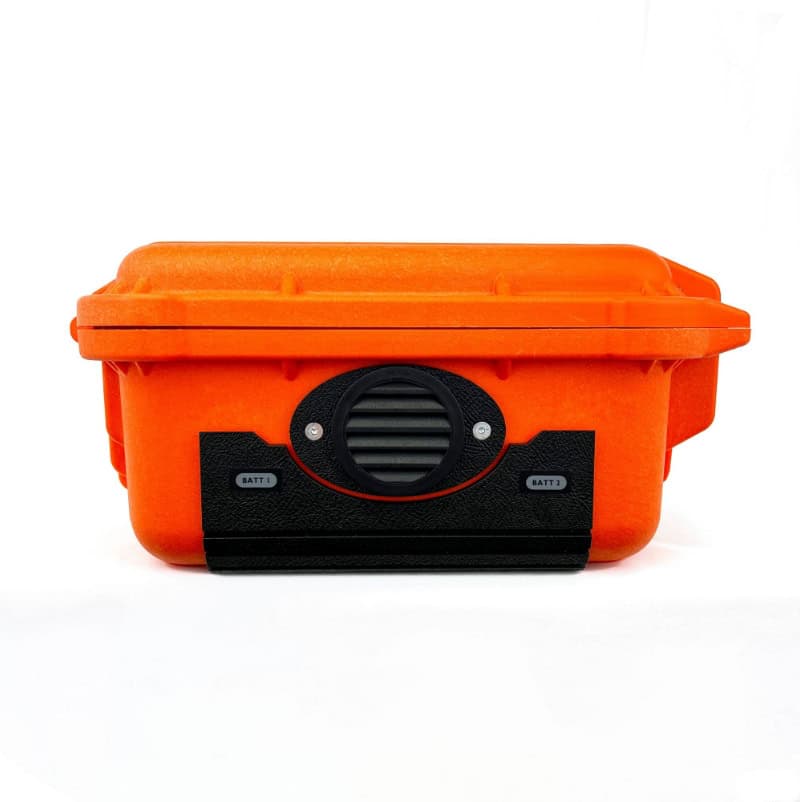

BLRT is a fully automatic bond, loop and joint resistance tester with built-in operator instructions.


It speeds up the testing process by diagnosing faults quickly, and automatically uploads results to production systems once all checks have passed. Recommended for testing bonds, loops and joints during the manufacture of aircraft and aircraft subassemblies.

Main BLRT Applications

Several wind turbines are positioned across mutiple fields. The sky is very dark and stormy, and a lightning bolt is visible.

Measuring resistance on aircraft & large structures such as wind turbines or infrastructure at risk from lightning strike.

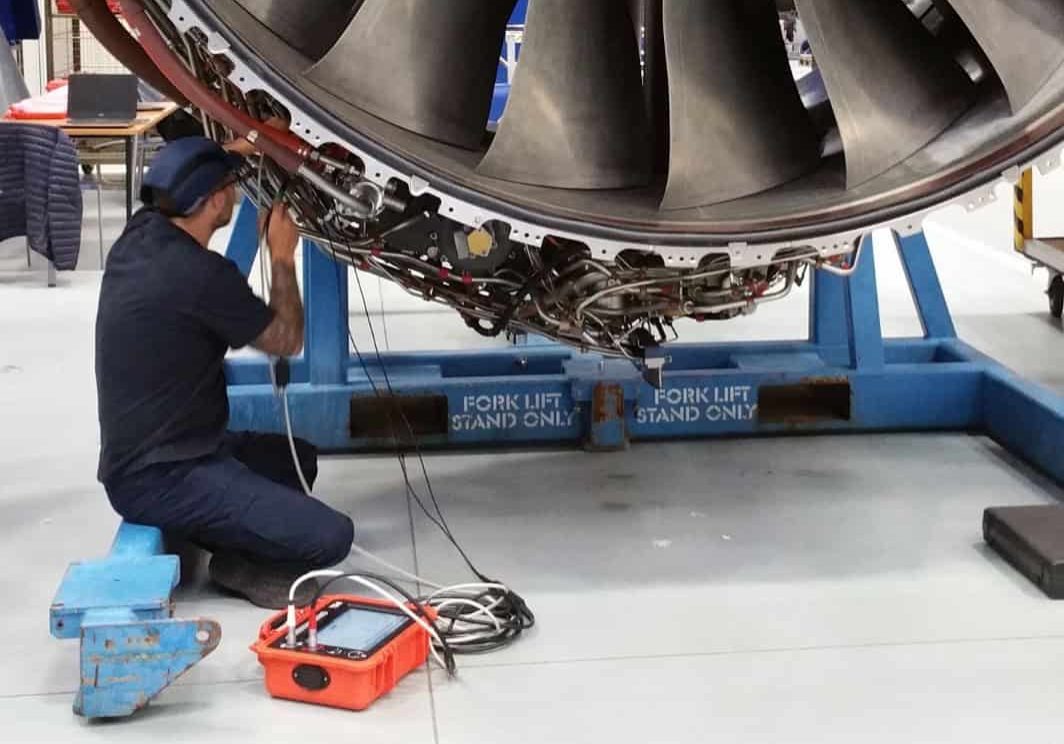

Aircraft technician testing the bond resistance between structural elements

Bond resistance between structural elements

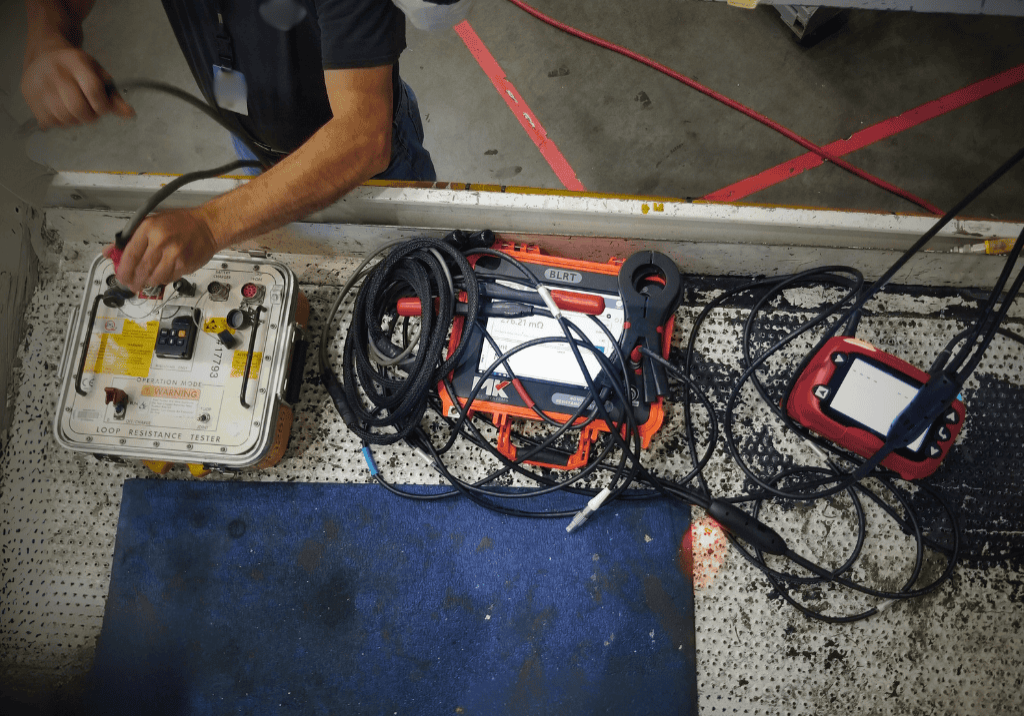

A BLRT tool sits on the ground of a maintenance gangway during bond testing of an aircraft.

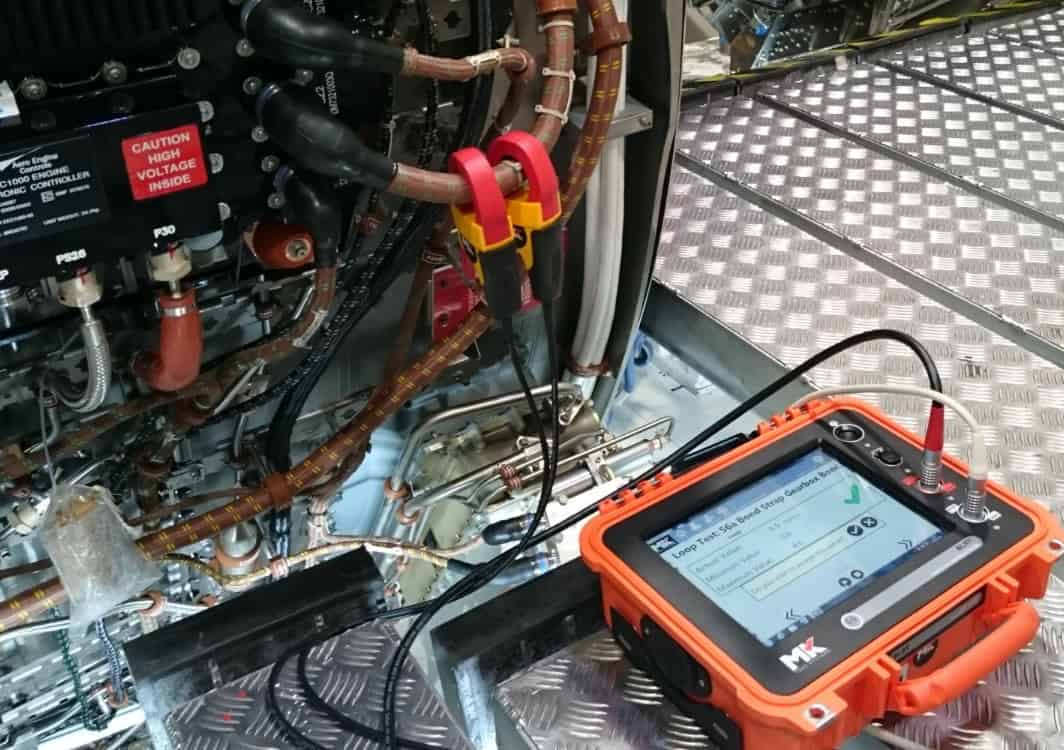

Loop resistance and integrity of cable shields and bonding straps

joint resistance

Joint resistance diagnostics

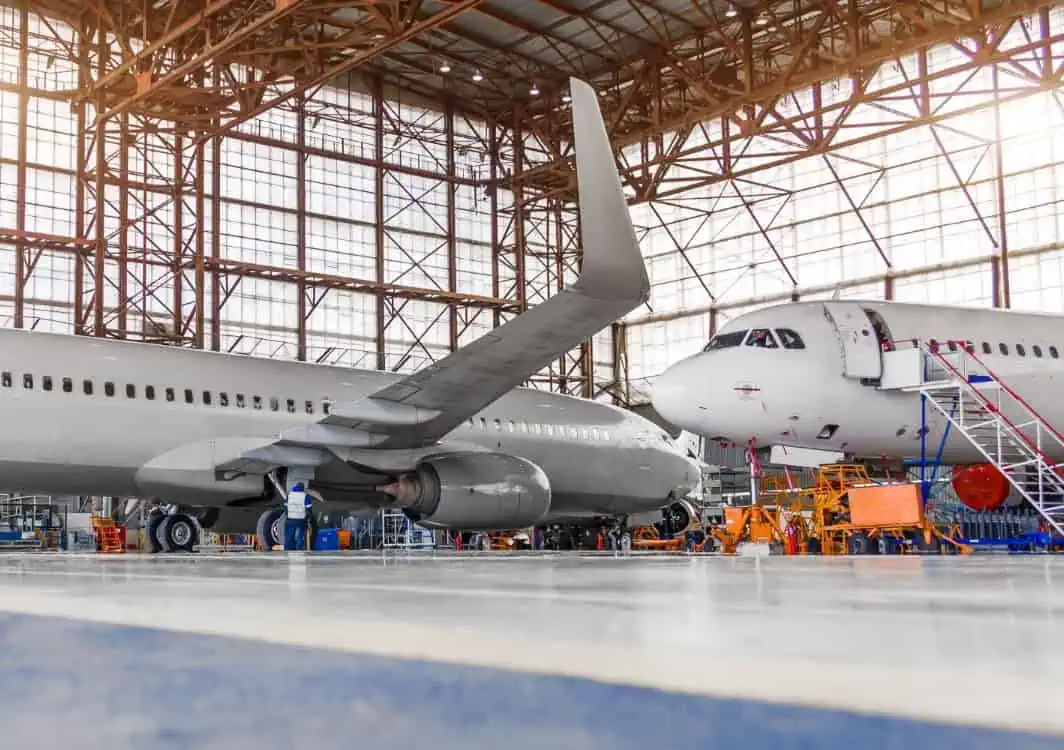

Two aircraft sit in a maintenace hangar
Testing during manufacture and as part of preventative maintenance checks
  • 200Hz frequency
  • Uses 4-wire (Kelvin) resistance measurement to ensure micro-ohm accuracy
  • Bond test resistance range from 0.1mΩ to 2Ω
  • Loop test resistance range from 0.5mΩ to 4000mΩ
  • Joint test resistance range from 0.05mΩ to 4000mΩ
  • On-screen operator instructions
  • Lightweight so only requires a single operator
  • Paperless process logs and uploads test results, guaranteeing traceability and avoid human error

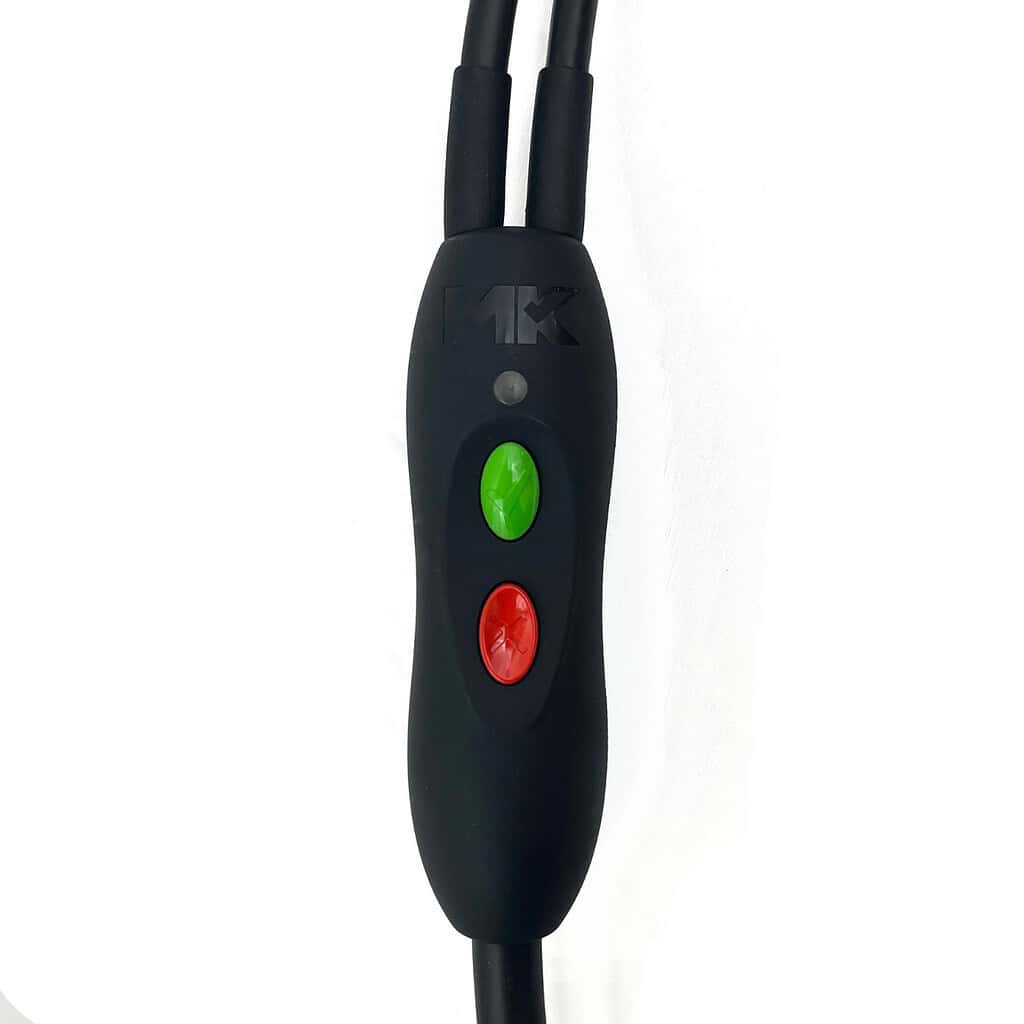

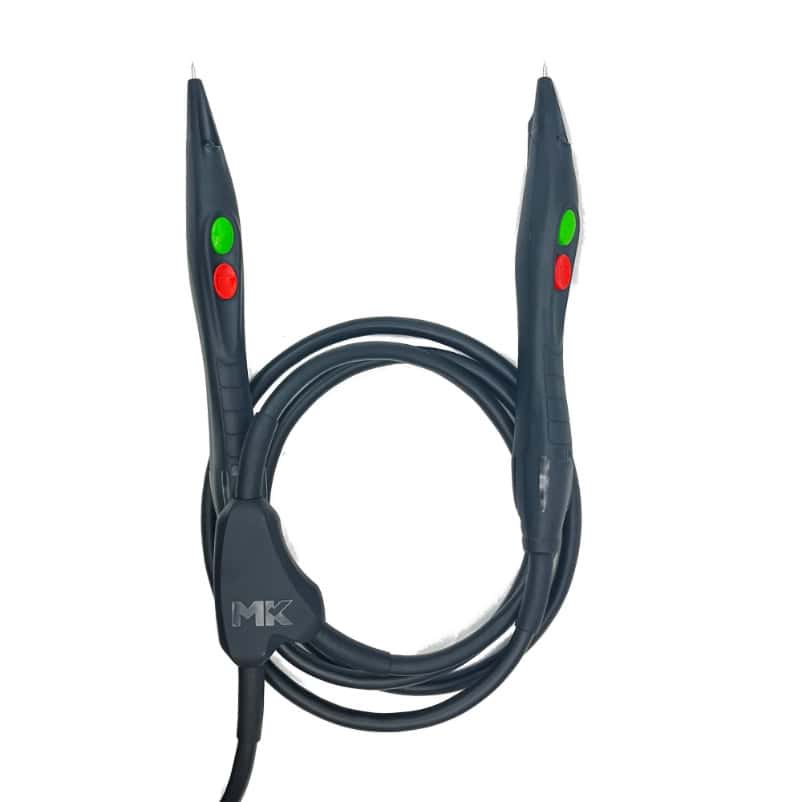

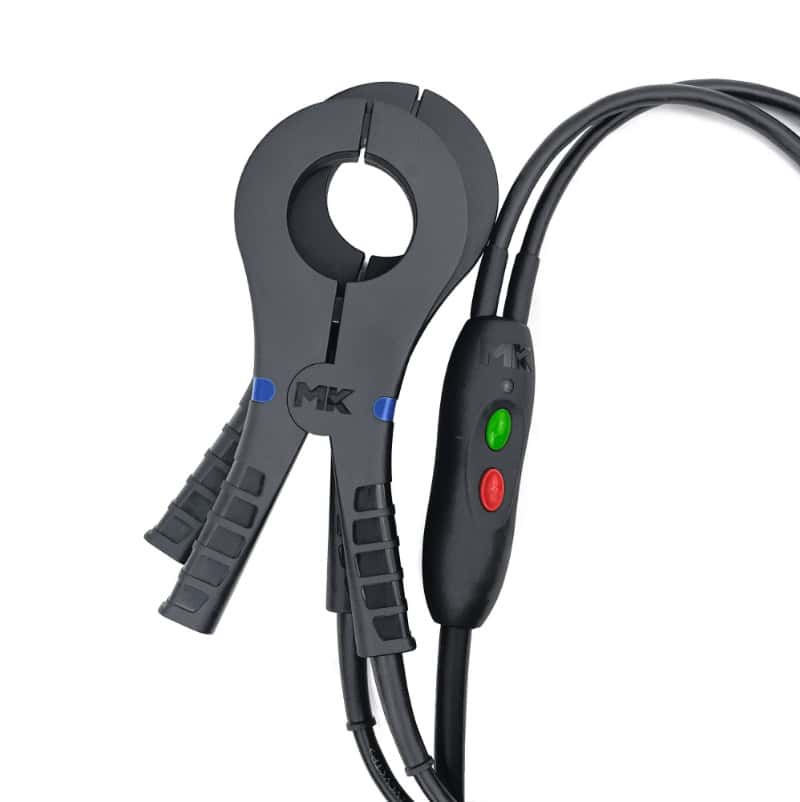

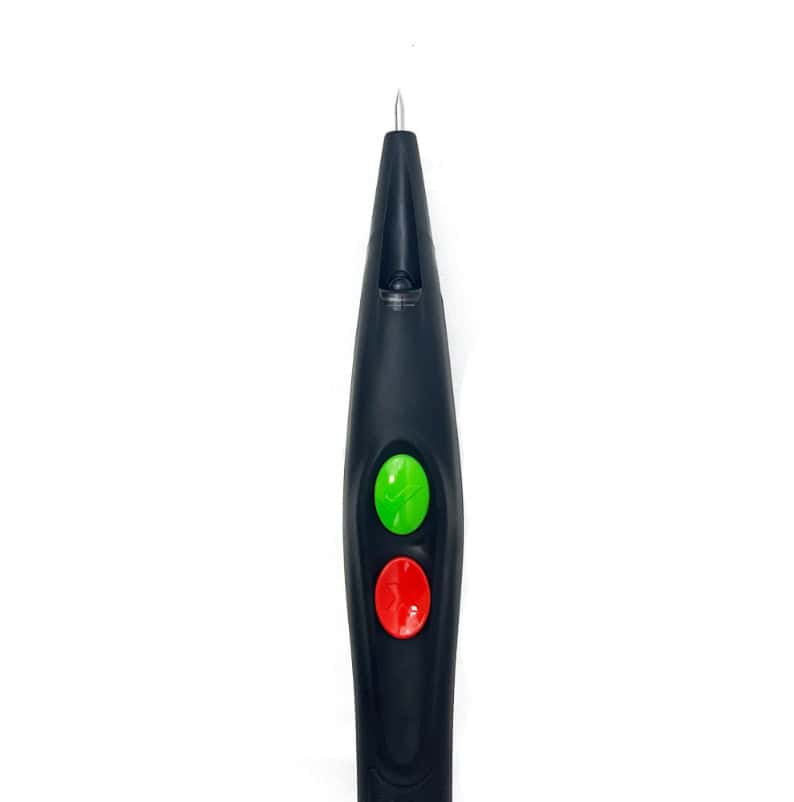

  • Pass/fail status indication on couplers and bond probes

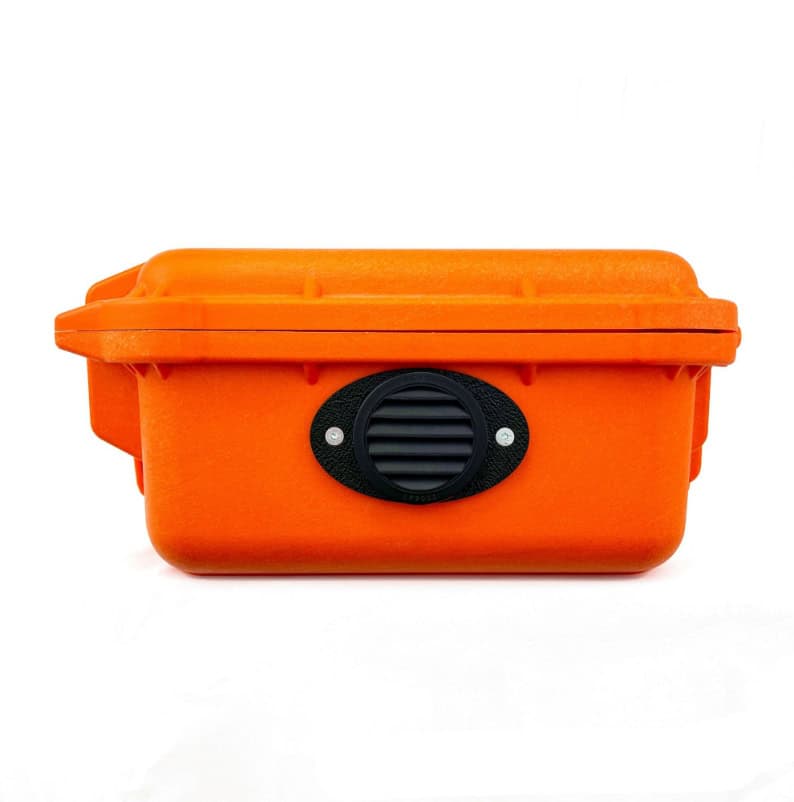

  • Dimensions 345mm length x 295mm width x 150mm depth
  • Weight 7kg / 15.5lbs (BLRT unit only)

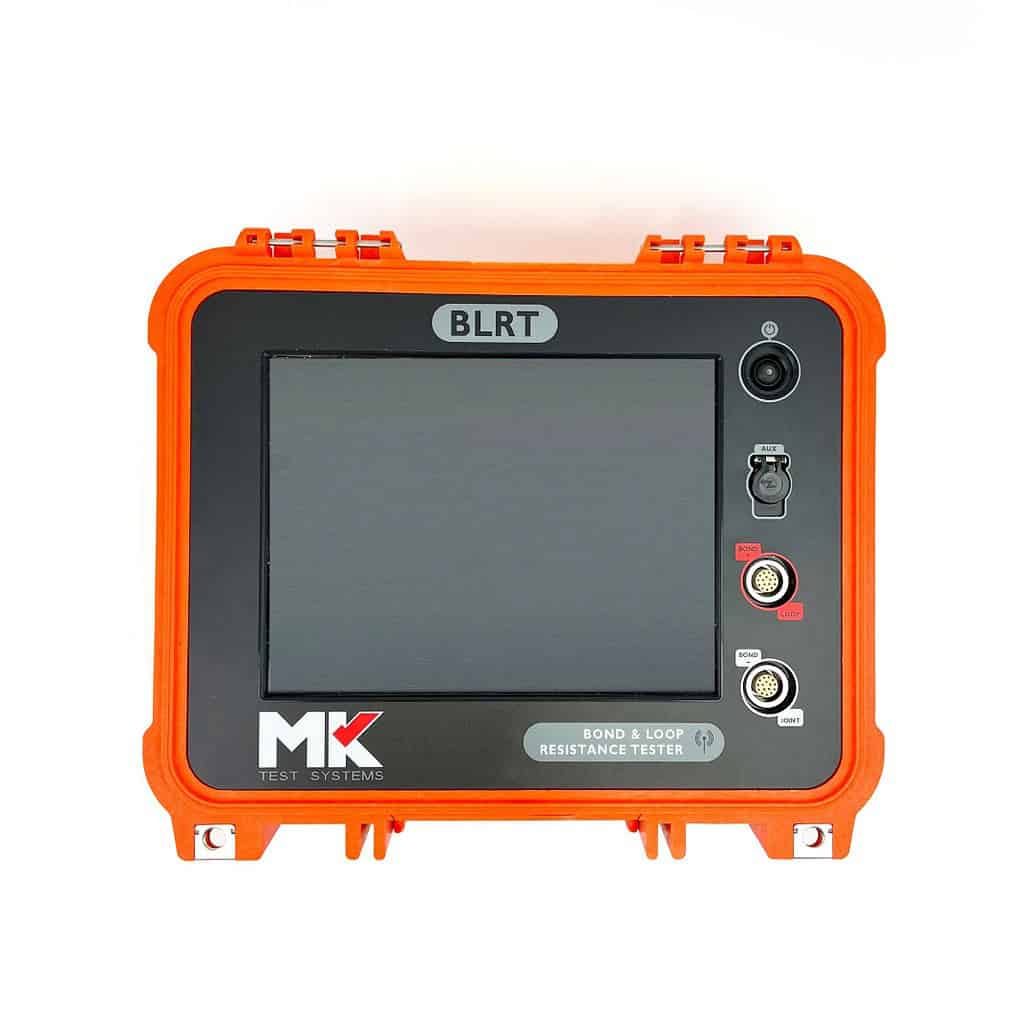

  • Integrated LCD 10.4” touchscreen monitor
  • Smart Li-Ion “hot-swap” batteries
  • Soft-start current source prevents arcing
  • Auto and manual modes

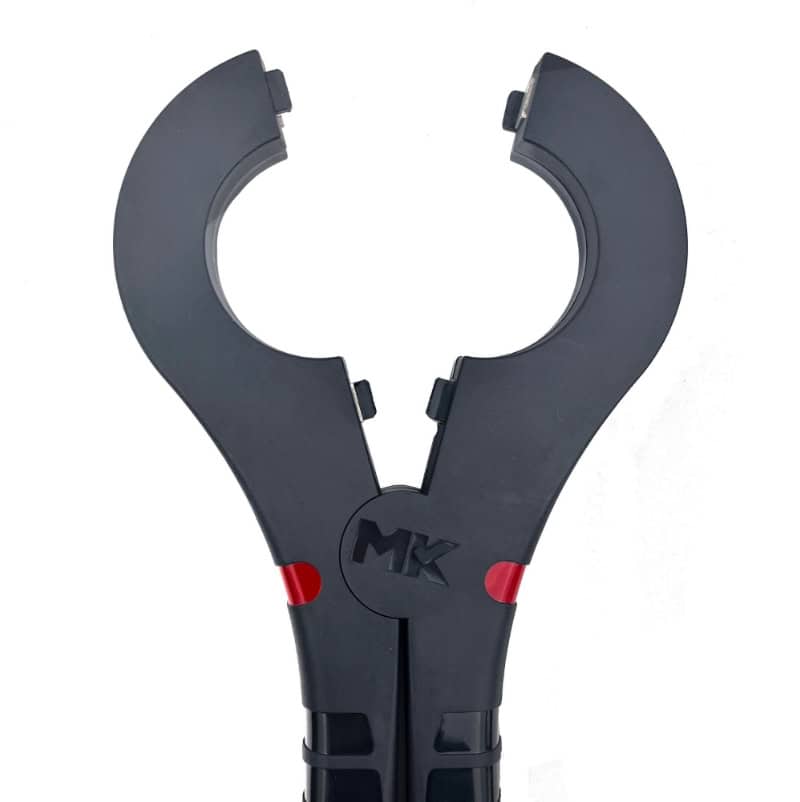

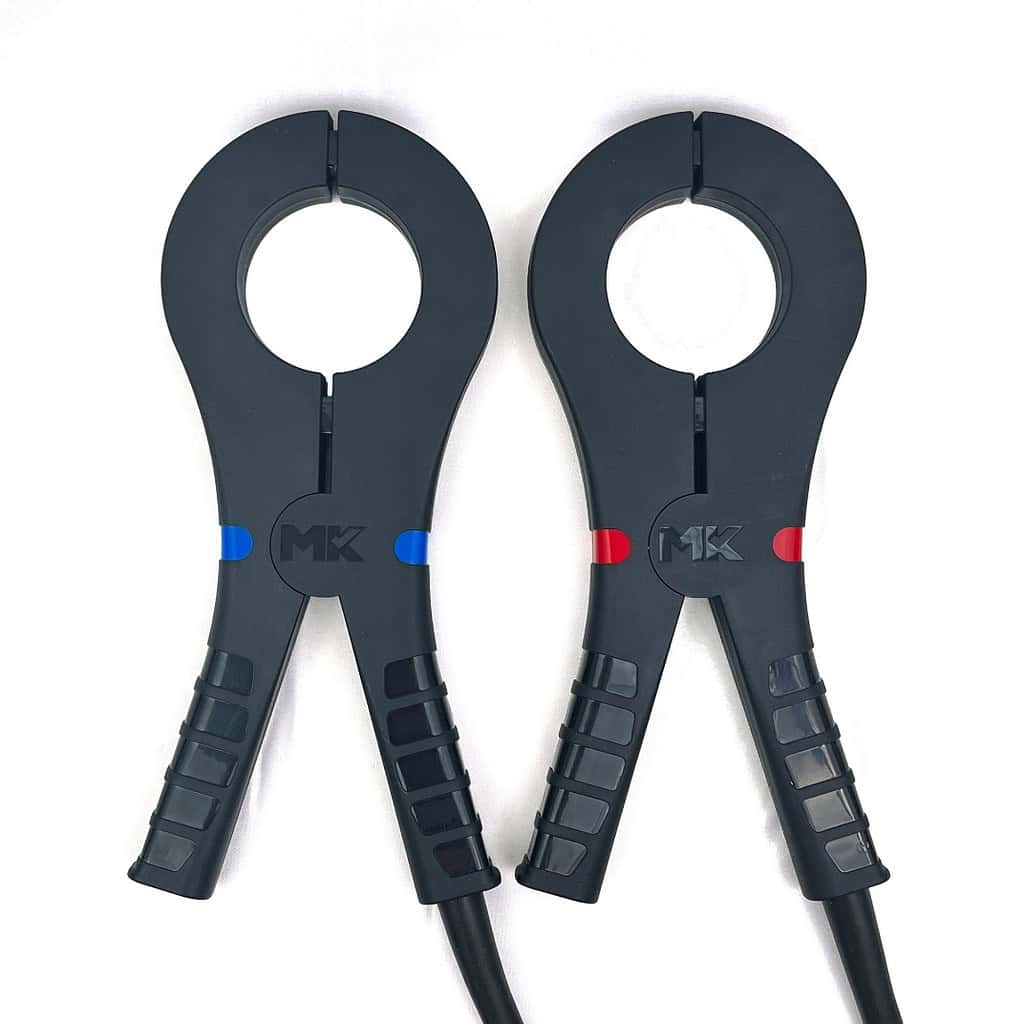

  • Active couplers and bond probes – no need to touch screen
  • Test management software automates the test process
  • Powered by MKAT test management software, rated ‘easy to use’ by 90% of our customers.
